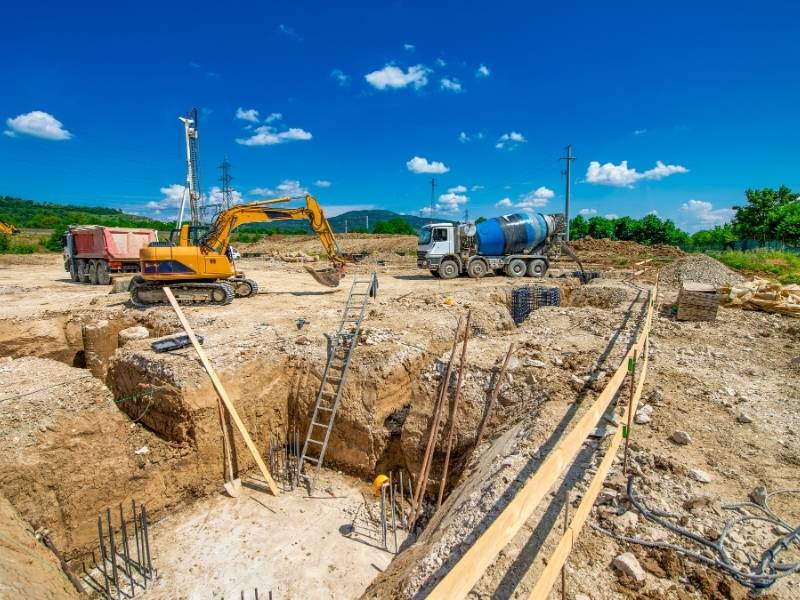

Some soils change size when they get wet. They swell up like a sponge when it rains. They shrink down and crack when they dry out. This constant shifting puts a lot of pressure on buildings. It can snap concrete floors, warp walls, and break pipes. Buildings constructed without the right design get damaged very fast.
Structural engineering fixes this problem before construction starts. Engineers who plan for these soils give buildings a much better chance of lasting for a long time. Here is how expert engineers keep structures safe on shifting clay soils.
How Shifting Soils Damage Buildings
Shifting soils contain a large amount of clay. Clay behaves differently than sand or gravel. When water hits clay, the tiny mineral pieces push apart to make room for the moisture. This causes the ground to expand significantly. When the weather turns dry, the water evaporates and the clay collapses back down. This cycle repeats over and over with the seasons.
Once the foundation cracks, the damage spreads to the rest of the house. You will start to see diagonal cracks in the drywall above doors and windows. Doors will stick and refuse to close properly. Floors will become unlevel, making furniture slide or wobble. In severe cases, underground utility lines like water and sewer pipes will bend until they burst apart. Fixing this structural damage after it happens costs a fortune.
Why Soil Tests Must Come First
Engineers cannot design a safe foundation without knowing exactly what is under the ground. Dirt changes from one lot to the next, even on the same street. One lot might have stable sand, while the lot right next door contains deep pockets of dangerous clay. A geotechnical investigation, also called a soil test, tells the engineer exactly what lies beneath the surface.
To perform this test, a team of workers brings a large drilling rig to the property. They drill deep holes into the earth, sometimes going 20 to 30 feet down. As the drill goes deeper, they pull out soil samples from different layers. These samples are sent straight to a laboratory for testing.
In the lab, technicians check two main things: the moisture content and the swell potential. The swell potential measures how much the clay will expand when it gets completely soaked. The engineers also look for the active moisture zone. This is the top layer of dirt where rain and sun cause the soil to change size constantly. Below this active zone, the ground moisture stays stable all year round.
Strong Foundations for Shifting Clay
Structural engineers use special foundation systems depending on how bad the clay is and what kind of building they are planning.
Post-Tensioned Slabs
This is a very common solution for houses and small residential projects. A post-tensioned slab looks like a regular concrete floor from the outside, but it has high-strength steel cables running through it in a grid pattern.
Workers pour the concrete over these loose cables. After the concrete dries and hardens for a few days, a crew uses heavy hydraulic jacks to pull the steel cables incredibly tight. Once the cables are fully tensioned, they anchor them to the edges of the slab. This process puts the entire concrete floor under high compression. It squeezes the concrete together tightly, making it stiff enough to resist bending and cracking when the soil tries to push up from underneath.
Drilled Piers
Drilled piers provide a much stronger option for heavy buildings, apartments, or custom homes built on very bad clay. Instead of resting the building directly on the moving surface dirt, engineers use deep concrete stilts.
A large drilling truck digs deep holes straight through the active clay layer. The holes go all the way down into stable bedrock or hard soil that never moves. Workers place long cages of steel rebar into the holes and fill them to the top with concrete. The building is then constructed on top of these solid stilts. Even if the top ten feet of dirt expands and shrinks every winter, the building stays perfectly still because its weight is supported far below the danger zone.
Reinforced Grade Beams
Grade beams are heavy structural concrete beams that run along the ground surface to connect the tops of the drilled piers together. They act like a bridge frame for the building.
When combined with drilled piers, the grade beams form a rigid grid that supports the walls. Engineers often design a small void or empty space directly beneath the grade beams using cardboard forms that degrade over time. This empty space gives the surface clay room to expand upward without lifting the concrete frame. The building rides safely on the deep piers rather than resting on the active clay.
Keeping Water Away From the Foundation
Proper site grading is the absolute first line of defense. The dirt around the outside of a building must slope away from the foundation walls in all directions. The ground should drop at least six inches over the first ten feet away from the structure. This slope keeps rainwater from pooling next to the foundation. Standing water creates a localized wet spot that forces the clay to swell up in one specific area, causing uneven pressure.
Roof runoff must also be directed far away. Gutters catch the rain, but downspouts often dump that water right at the base of the walls. This is a primary cause of foundation failure. To fix this, builders add long extension pipes or connect the downspouts to underground solid drain pipes that carry the water completely away from the property.
On very wet sites with heavy clay, engineers will install sub-drainage systems. They dig a trench around the foundation footing, line it with gravel, and lay down a perforated pipe. This pipe catches underground water and routes it away from the house before the moisture can soak into the clay.
Working Together for a Better Design
A successful project requires the soil expert and the structural engineer to talk to each other early in the planning process. They need to share facts before any blueprints are finalized.
The soil expert explains exactly how the ground behaves on that specific lot. The structural engineer takes those facts and uses them to design the concrete and steel. When these two teams talk in real time, the final building plan is much safer and more efficient.
Soil conditions can vary across a single piece of land. A soil report might flag an area in the backyard where the clay is much worse than the front yard. Early teamwork allows the structural engineer to adjust the foundation depth or add extra piers just in that specific zone, rather than spending extra money to make the entire foundation deeper.
This early communication saves a lot of money for the property owner. Changing a line on a blueprint costs absolutely nothing. Fixing a cracked foundation after the concrete has already dried is a major financial disaster. Planning ahead ensures the building will stay strong and stable for decades to come.
Frequently Asked Questions
What does a structural engineer do for shifting soils?
They design the right foundation to handle ground movement. They use soil data to choose systems that keep the building safe and level.
Why do you need a soil test?
Clay changes over very short distances. A test measures how much the dirt swells. This prevents builders from making wrong assumptions.
What foundation type is best?
It depends on the project. Slabs with tight steel cables work well for many homes. Deep concrete piers work best for heavy buildings or very bad clay.
How does water affect the foundation?
Water makes clay soil expand. If water pools on just one side of a house, the ground pushes up unevenly and cracks the walls.
When should the engineers start talking?
They should talk during the early planning stages. Solving problems on paper prevents expensive mistakes during construction.
